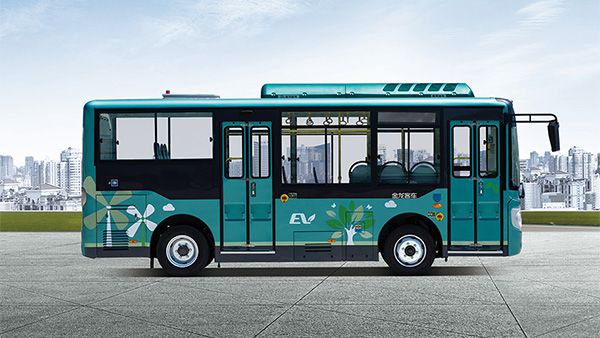

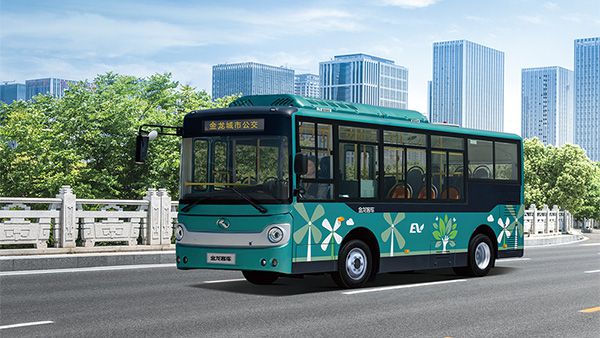

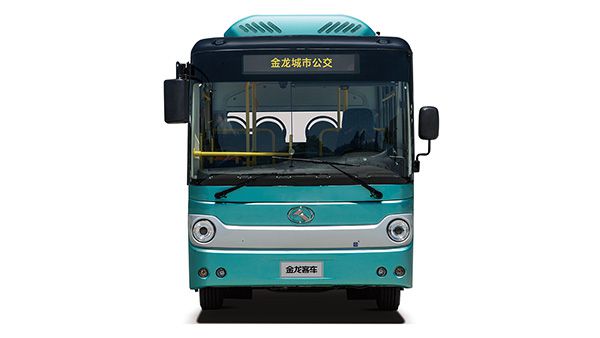

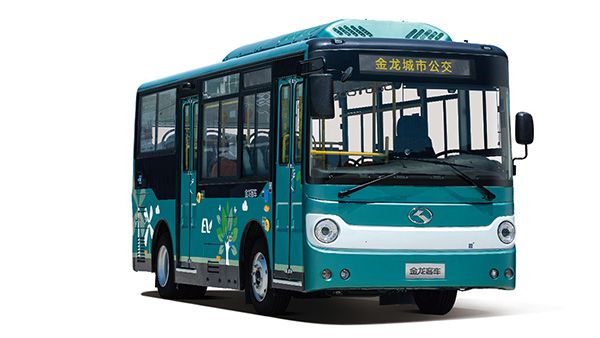

Technical Specifications of 6m, 9 Seats, Electric Bus
| Model | XMQ6650AGBEVL | |
| Direction (LHD/RHD) | LHD/RHD | |
| Technical Parameters | ||
| Body structure | Monocoque | |
| Length×Width×Height (mm) | 5990×2100×2740 (2780, 2855, 2895) | |
| Passenger seats and driver seat | 9+1 | |
| Max. passenger capacity | 19 | |
| Battery (kwh) | 140.95 | |
| Maximum speed(km/h) | ≥70 | |
| Gradeability (%) | ≥15 | |
| Motor | ||
| Model | Permanent magnet synchronous motor | |
| Peak power (kw) | 160 | |
| Chassis | ||
| Suspension system | ● | Leaf spring |
| Front axle (T) | ● | 3.5 |
| Rear axle (T) | ● | 5.5 |
| Electric power steering pump | ● | Dual power steering pumps |
| Tire | ● | 215/75R17.5 |
| Cooling fan | ● | King-long ICS |
| Body | ||

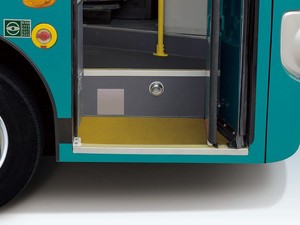

| Doors | ● | Folding bus |
| Side windows | ● | Tempered glass |

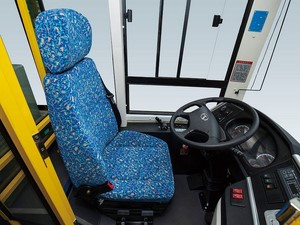

| Driver seat | ● | Pneumatic damping driver seat |

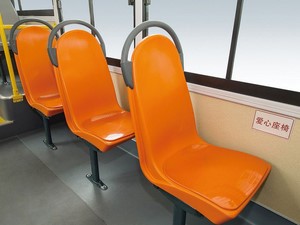

| Passenger seats | ● | Plastic seat |
| Mirror type | ● | Iron mount rearview mirror (with defrosting function) |
| ● | Aluminum alloy mount rearview mirror (with defrosting function) | |
| Air conditioner | ● | 12KW |
| Heating and defrosting states | ● | Low-voltage electric defrosting |
| ● | High-voltage electric defrosting | |
| Electrical instrument | ● | Bus |
| Player | ● | HDD player |
| ● | MP3 player | |
| ● | DVD player | |
| ABS | ● | ABS |
| ● | EBS | |

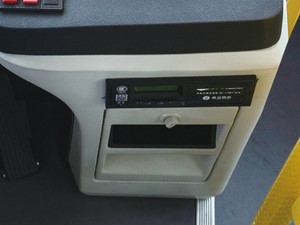

| Automobile data recorder | ||
| Middle door and back-up monitor | ||
| Guideboard | ||
| Lifting device (for air spring) | NA | |
| New Technology | ||
| On-board computer | ||
| 360° panoramic views | ||
| EPB | ||
| Notes: ● Standard; ◎Optional Specific models and technical specifications are subject to the actual vehicle configuration. King Long reserves the right to change pictures and parameters and the right of final interpretation. | ||
